ISO AWG19 Polyester Polyimide Film Enameled Copper Wire

Basic Info

Model No.: EIW180

Insulation Level: C, H, F, B, Other

Certification: ISO9001, RoHS, Other

Brand: Other

Application: Transformer, Electrical Equipment, Motor, Other, Double Or According To Your Requriment

Shape: Round Wire

Conductor Material: Copper Wire

Size(mm): 0.31 - 3.0

Conductor Wire Diameter: ± 0.010mm

Breakkdown Voltage: ≥2.5KV

Reround Angle: ≤45°

ELONGATION: ≥30%

Electrical Resistivity: ≤0.017241Ω·mm²/m

Thermal Shock Temperature: ≥180℃

Adhesion: 32%

Additional Info

Packaging: Wooden Pallet or Wooden Box

Productivity: Above 50 Thousand Ton

Brand: Huaon

Transportation: Ocean

Place of Origin: Xinxiang, Henan, China

Supply Ability: 100000 Ton One year

Certificate: IATF16949 / ISO9001 / RoHS

HS Code: 85441100

Port: Qingdao,Shanghai,Ningbo

Product Description

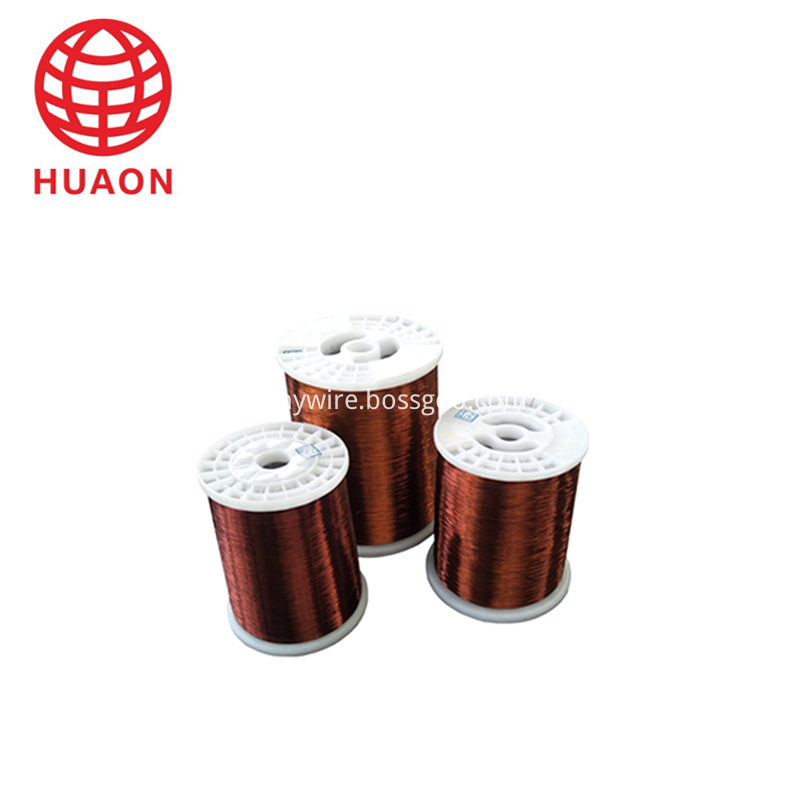

ISO AWG19 Polyester Polyimide Film Enameled Copper Wire

    ISO AWG19 Polyester Polyimide Film Enameled Copper Wire with the high conductivity and magneto conductivity of copper, high strength of steel, bending and tin`s thermal conductivity, corrosion resistance, and oxidation resistance at high temperatures.

    Enameled copper wire has a surface coating of high strength, high temperature, solvent resistance, good flexibility, small size, low full tank, suitable for manual and automatic mechanical winding, embedded line.

   Copper wire is used in power generation, power transmission, power distribution, telecommunications, electronics circuitry, and countless types of electrical equipment.

    Henan Huayang Copper Group is the first enterprises manufacturing winding wire in Henan Province. Main products include PEW enameled copper wire, EIW enameled copper (Aluminium) wire, EI/AIW enameled copper (Aluminium) wire, EIW/A enameled copper wire,Enameled and glass-fiber copper (Aluminium)wire, Paper Covered wire, Glass fiber wire, Film Covered Wire, Bare Wire, Corona Resistance enameled Round Copper Wire and Copper Accessories (Plastic Spool, insulating paint and Cable wire ).

    Group insist the ``quality and efficiency`` principle, in accordance with the ``Made in China 2025`` and China the 13th Five-year Plan to make the Group 2016-2020 the Third Five-year Development Plan. Make efforts to enhance science and technology innovation and product R&D capability. Strengthen the investment for new product R&D. Facing the well-known electrical equipment manufacturing enterprises to realize ``change for manufacturing to create``. Brand position is ``different fields to implement a dedicated, exclusively for the product``. Market positioning is ``Stabilize the end user, develop the high-end user``. Corporate positioning is ``internet + trade + production``. Improve management and technical level. To ensure product quality, create brand and corporate culture. Do the leading manufacturer of winding wire in the industry.

• Raw Material For Smelting : Copper Rod / Copper Bar/ Aluminum Rod
• Drawing Rolling :Wire From Copper Rod
• Annealing : High Temperature resistance
• Japanning : Wire covered Polyester
• Finished Product : Enameled Copper Wire
• Detection :Check the finished product
• Package : PT25/60/90/200 or Wooden Spool
• Shipping : Container

1. Small transformers, linear motors, relays, solenoids, small motors, clock coils, watch coils, magnetic heads Microwave transformers;

   Windings with light weight, high conductivity, good heat resistance;

   Winding used for high frequency signal transmission

    Enameled wire used in small-motor rotor winding .etc.

    Magnet wires used in monitor deflection coil;

    Magnet wires used in degaussing coil;

    Other special magnet wire.

 2. Automotive sensors and coils as relais and ignition coils

 3. Generators, dry-type or oil-immersed.

 4. Anti-explosion motor, air-conditioner compressor, washing machine, Magnetic wire used in High Frequency transformer, common transformer, inductance coils, electromotors, household        electromotors and micro-motors;

 5. Military and space applications.

                           Wooden spool (250*500/250*400/250*600 )+Wooden box

Inner packing: in different plastic spools(Plastic Spool of PT-4,PT-10,PT-15,PT-25) according to your wire diameters.

Outer packing: wooden spool and wooden case or According customers' special requirement.

• Free samples are available.(100-150 cm is free)

• Price depends on the size of clients' order and excellent quality.
• Advanced Technology & Management with senior professional team.
• Strong production ability and shipment on-time.
• Supply you nice after-sale service & technical guidance.
